Solar Nighthawk Light
Super star in the solar street light market.
E-mail: info@socreat.com
Mobile: +86 136 9226 2895
solar panel can be adjusted in vertical
and horizontal direction
multiple led chip work simultaneously,
light efficiency of LED chip could be 210lm/w

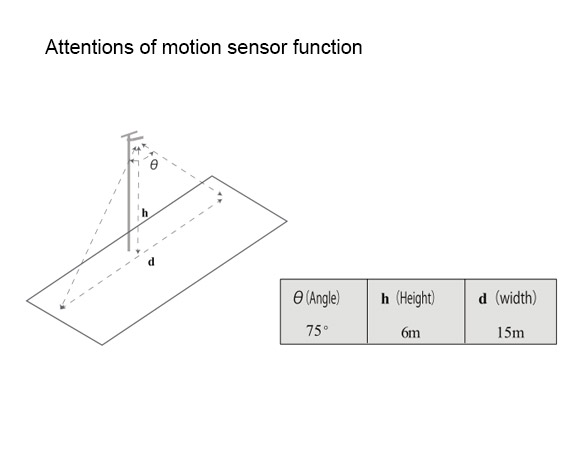

radar controlled , called doppler effect,
more intelligent, energy-saving
6 work modes for choice
protect battery by software and hardware,
supporting battery charge at 0v
lighting are a much wider, the maximum
of using the lighting all light the road
Easy to transport, install and
maintain
| Type | SC-NH65 | SC-NH80 | SC-NH100 | SC-NH150 | SC-NH200 | |
| Panel | Power | 65W/18V | 80W/18V | 100W/18V | 150W/18V | 100W*2pcs/18V |
| Material | Mono crystalline silicon | Mono crystalline silicon | Mono crystalline silicon | Mono crystalline silicon | Mono crystalline silicon | |
| Solar cell efficiency | 19-20% | 19-20% | 19-20% | 19-20% | 19-20% | |
| Lithium battery | Capacity | 210WH | 340WH | 420WH | 575WH | 650WH |
| Charge cycle times | 2000 times | 2000 times | 2000 times | 2000 times | 2000 times | |
| Lamp head | Luminous flux | 3000-3500lm | 4500-5000lm | 6000-6500lm | 7200-7500lm | 8400-9600lm |
| Light output | 20W | 30W | 40W | 50W | 60W | |
| LED qty | 105pcs | 105pcs | 105pcs | 105pcs | 105pcs | |
| LED chip | Bridgelux | |||||
| Color temperature | 3000-6000K | |||||
| CRI | ≥70Ra | |||||
| Material of lamp head | Aluminum alloy | |||||
| Elevation angle | 12° (attention to Dialux use) | |||||
| Lifespan | 50000hrs | |||||
| System | Light distribution | Batwing lens with polarized light | ||||
| Lighting time(full charged) | 2-3 rainy days | |||||
| Operation temperature | -20℃~60℃ | |||||
| Installation | Top diameter of pole | 80mm | ||||
| Mounting height | 5-8m | 7-12m | ||||
| Installation spacing | 10-20m | 20-30m | ||||
LED Chip
MPT multi-string protection
board test system
Waterproof Test
High/low Temperature Test
Anti-shocking Test
Multi-channel temperature
recorder
