Integrated Solar Street Light
Solar Street Light (YP series)
Compact yet powerful, YP spike lights accent sculptures and shrubs with focused beams. An ultra-clear lens and single-string MPPT charger maximise every ray, making YP the go-to choice when only premium solar LED garden lights and dependable garden solar powered lights will do.
Learn More About：
Integrated Solar Street Light
Download:
Solar Street Light (YP series)
Applications:
| Type | YP-150 | YP-200-A | YP-200 |
| Solar Panel | 150W /18V | 150W / 18V | 200W / 18V |
| LiFePO4 Battery | 512WH | 640WH | 640WH |
| Charge Cycle Times | 2000 times | ||
| Luminous Flux | 9600LM | 12800LM | 12800LM |
| Lamp Power | 60W | 70W | 70W |
| LED qty | 140pcs | ||
| Lifespan of LED | 50000hrs | ||
| Color Temperature | 6000-7000K | ||
| Light Distribution | Batwing lens with polarized light | ||
| Lighting time(full charged) | 5-7 rainy days | ||
| Working temperature | -20℃~60℃ (Charge above 0℃) | ||
| Top diameter of pole | 60mm | ||
| Mounting height | 8-10m | ||
| Installation spacing | 30-40m | ||

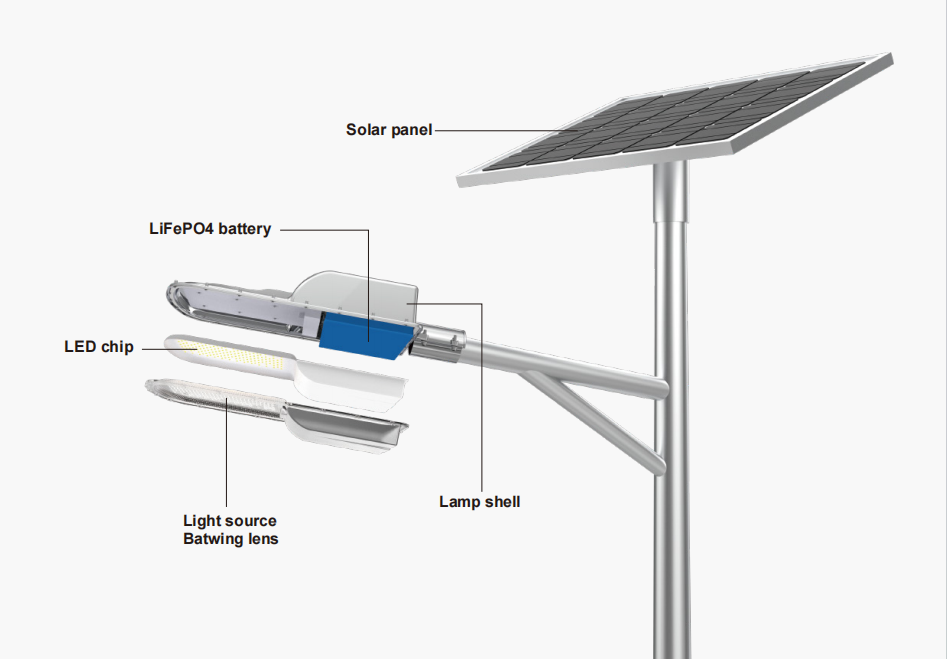

Structure
LiFePO₄ Battery
Grade-A cells deliver stable power and long service life across all three families.
Read More
Solar Panel
High-efficiency mono modules matched to each model's power draw.
Read More
LED Chip / Light Source
Premium 3030 or 5050 LEDs tuned for garden ambience or accent beams.
Read More
Lamp Shell
Anodised or powder-coated aluminum housings in post, spike or globe formats withstand outdoor extremes.
Read More
Bat-Wing Lens
RoadSmart's patented optic widens beam spread, eliminating dark spots while keeping glare low.
Read More
IPC 5.0 Technology
Five-stage intelligent power,intelligent algorithm to achieve perfect balance of
brightness and discharge time.
Read More
Delivery
1、Demand Analysis
● Consultation
● Requirements Confirmation
● Environmental Assessment
2、Solution Design
● Component Selection
● System Configuration
● Preliminary Quotation
3、Raw Material Procurement
● Supplier Selection
● Quality Inspection
● Production
● Packaging
4、Installation
● Civil Works
● Mounting
● System Debugging
5、Client Training
● Operation Training
● Maintenance Workshop
● Documentation Delivery
6、After-Sales Suppor
● 24/7 Helpdesk
● Preventive Maintenance
● Spare Parts Guarantee
7、Feedback Integration
● KPI Monitoring
● Design Iteration
● Client Satisfaction Surveys
More Intelligent Solar Street Light Models
FAQ
Do they attract insects?
Using a warm-white spectrum and sealed housing, they minimise insect attraction compared with conventional lights.
Are they repositionable?
Yes. The ground spike design lets you relocate fixtures easily to match seasonal planting changes.
What makes YP spike lights premium?
Focused beams, ultra-clear lenses and single-string MPPT charging maximise light output on sculptures and shrubs.
