Integrated Solar Street Light
Solar Moon Light
Corrosion-resistant alloys and weather-sealed electronics ensure this integrated solar street light looks good and performs flawlessly in gardens, resorts and coastal boardwalks.
Learn More About：
Integrated Solar Street Light
Download:
Solar Moon Light
Applications:
Type | SC-ML-R40 |
Power | 40W/4.5V |
Material | Monocrystalline silicon |
Solar cell efficiency | 19-20% |
Capacity | 144WH/45AH |
Charge cycle times | 2000 times |
Luminous flux | 1500-1800lm |
Light output | 12W |
LED qty | 30pcs |
LED chip | Bridgelux 160lm/w |
Color temperature | 3000-7500K |
CRI | ≥70Ra |
Material of lamp head | Die-cast aluminum |
Lifespan | 50000hrs |
Light control voltage | 1V |
Lighting time(full charged) | 2-3 rainy days |
Operation temperature | -20℃~60℃ |
| Top diameter of pole | 60mm |
| Mounting height | 3-5m |
| Installation spacing | 8-10m |

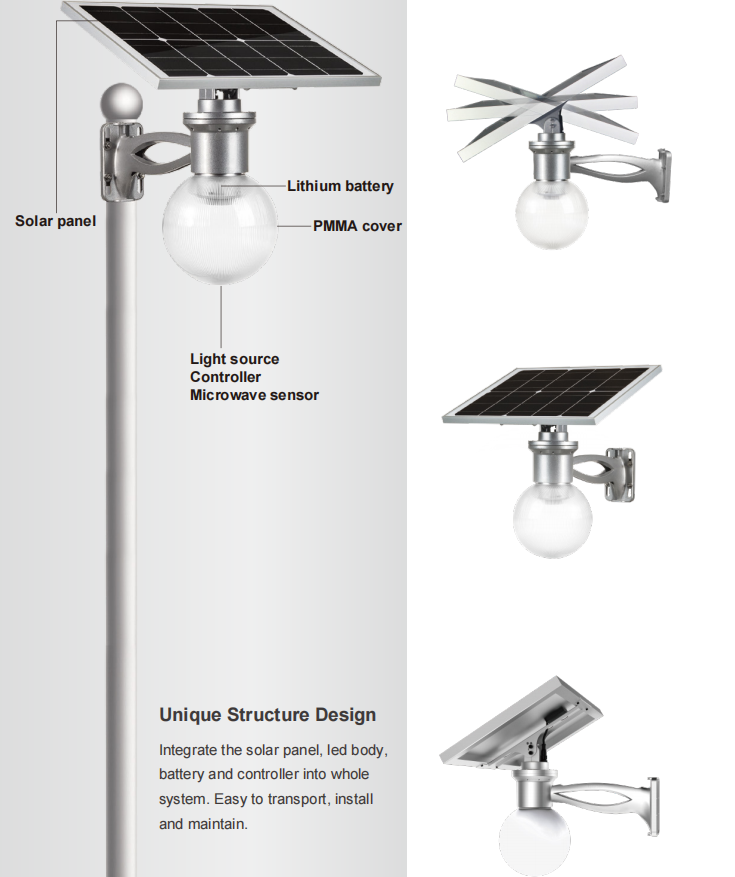

Structure
Lithium Battery
Sealed LiFePO₄ pack delivers long cycle life and stable night-long power.
Read More
PMMA Cover
UV-resistant diffuser shields the LEDs and casts a soft, 360° glow.
Read More
Solar Panel
High-efficiency mono-crystalline disc on the top surface harvests daylight energy.
Read More
Light Source
Low-power SMD LEDs mounted on an aluminum core board for superior heat dissipation.
Read More
Controller
Integrated single-string MPPT regulates charge and discharge for maximum autonomy.
Read More
Microwave Sensor
Radar module detects motion and automatically raises brightness when people approach.
Read More
Delivery
1、Demand Analysis
● Consultation
● Requirements Confirmation
● Environmental Assessment
2、Solution Design
● Component Selection
● System Configuration
● Preliminary Quotation
3、Raw Material Procurement
● Supplier Selection
● Quality Inspection
● Production
● Packaging
4、Installation
● Civil Works
● Mounting
● System Debugging
5、Client Training
● Operation Training
● Maintenance Workshop
● Documentation Delivery
6、After-Sales Suppor
● 24/7 Helpdesk
● Preventive Maintenance
● Spare Parts Guarantee
7、Feedback Integration
● KPI Monitoring
● Design Iteration
● Client Satisfaction Surveys
More Intelligent Solar Street Light Models
FAQ
Does it include motion sensing?
Moon Light ships with a PIR sensor that gently boosts brightness when people approach, conserving energy the rest of the night.
Where is it best deployed?
Parks, pathways, resorts, and garden walkways—anywhere low-profile, glare-free illumination is preferred.
Is Moon Light considered an integrated solar LED street light?
Yes. The circular design houses panel, battery, controller, and LEDs in a single disc-shaped unit for minimalist aesthetics.
