Solar Star Light -ST2

Come from nature, Light up the future

Solar Star Light -ST2 video

Home > Products > Solar street light > All In One Solar Street Light

Solar Star Light -ST2

Function
Parameters
Features
Test

- Patented appearance

  Integrated design of solar panel, microcomputer controller, lithium battery and high-efficiency LED light source
- Modular design

  Modular design of battery and LED chip, transportation, installation and maintenance are more economical and simple
- Proprietary control system

  Road Smart self-developed solar controller can adjust different working modes freely, unique control system with more functions, stability is more stronger; Option of microwave induction function to save power and have longer lighting time
- The fourth generation of intelligent power control

  Upgraded intelligent power control function to regulater reasonable discharge power according to intelligent judgment of recent weather conditions, support longer lighting time and more rainy days
- Intelligent high-efficiency lamp chips

  100pcs of 3030 lamp chips, optimized brightness, the whole lighting effeciency is greater than 160lm/w
- Intelligent charge and discharge management

  Double protection of charging and discharging by software and hardware, and intelligent equalization technology, cycle charging and discharging more than 2000 times
- Professional light distribution design

  Equipped with patented lens to make the irradiation area more uniform
- Indicator lights of battery capacity

  Indicator lights of battery capacity display the power of the lamp obviously, which is convenient to observe the charging and discharging of the lamp
- Rotating angle design

  The illumination area and angle of light can be adjusted reasonably according to the width of the road

Type	ST2-30	ST2-40	ST2-60	ST2-80	ST2-100	ST2-120	ST2-160
Solar panel	45W/5V	60W/5V	80W/18V	110W/18V	110W/18V	110W/18V	160W/18V
LiFePO4 battery	192WH	256WH	384WH	512WH	640WH	768WH	896WH
Charge cycle times	2000 times
Luminous flux	5000LM	7000LM	10000LM	13000LM	15000LM	18000LM	20000LM
LED qty	100pcs		140pcs	280pcs
Lifespan of LED	50000 hrs
Color temperature	3000-7500K
Light distribution	Batwing lens with polarized light
Lighting time	5-7 rainy days
Working temperature	-20℃~60℃
Top diameter of pole	60mm
Mounting height	5-6m	7-8m		9-10m			10-12m
Installation spacing	20-40m

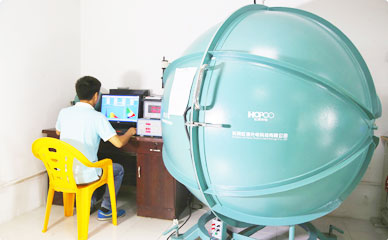

- LED Chip
- MPT multi-string protection
  board test system
- Waterproof Test
- High/low Temperature Test
- Anti-shocking Test
- Multi-channel temperature
  recorder
