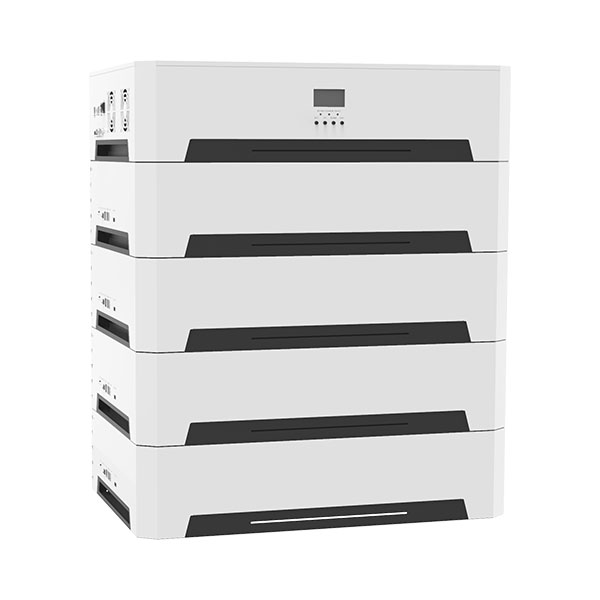

RS-EOH is a new generation of home energy storage system that stores solar energy and provides clean, reliable electricity when there is no sunlight. Combine RS-EOH with solar energy for a zero-emissions lifestyle.
Module design
MPPT
LCD
LiFePO4 Battery
Scalable up 5-20kWh(4 parallel)
| RS-EOH48-5.0S-S1 | RS-EOH48-5.0U-S1 | |
| BATTERY | RS-H4850A-EO | |
| Battery Type | LiFePO4 | LiFePO4 |
| Battery Energy | 5.12kWh | 5.12kWh |
| Battery Capacity | 100AH | 100AH |
| Battery Rated Voltage | 51.2V | 51.2V |
| Battery Working Voltage Range | 44.8~57.6V | 44.8~57.6V |
| Battery Charging Current | 100A | 100A |
| Battery Discharging Current | 100A | 100A |
| DOD | 80% | 80% |
| Parallel Quantity | 4 | 4 |
| Designed Life-span | 6000 | 6000 |
| PV CHARGE | ||
| Solar Charge Type | MPPT | MPPT |
| Maximum Output Power | 5KW | 5KW |
| PV Charging Current Range | 0~80A | 0~80A |
| PV Operating Voltage Range | 120~500V | 120~500V |
| MPPT Voltage Range | 120~450V | 120~450V |
| AC CHARGE | ||
| Maximum Charge Power | 3150W | 2100W |
| AC Charging Current Range | 0~60A | 0~40A |
| Rated Input Voltage | 220/230Vac | 110/120Vac |
| Input Voltage Range | 90~280Vac | 90~140Vac |
| AC OUTPUT | ||
| Rated Output Power | 5KW | 5KW |
| Maximum Output Current | 30A | 50A |
| Frequency | 50Hz | 60Hz |
| Overload Current | 35A | 55A |
| BATTERY INVERTER OUTPUT | ||
| Rated Output Power | 5KW | 5KW |
| Maximum Peak Power | 10KVA | 10KVA |
| Power Factor | 1 | 1 |
| Rated Output Voltage(Vac) | 230Vac | 120Vac |
| Frequrncy | 50Hz | 60Hz |
| Auto Switch Period | ＜15ms | ＜15ms |
| THD | ＜3% | ＜3% |
| GENERAL DATA | ||
| Communication | RS485/CAN/WIFI | RS485/CAN/WIFI |
| Operating Temperature | Charge:0~45°C Discharge:-10~45°C | Charge:0~45°C Discharge:-10~45°C |
| Operation Humidity | 5%~85% | 5%~85% |
| Nominal Operation Altitude | ＜2000m | ＜2000m |
| Cooling Mode | Force-Air Cooling | Force-Air Cooling |
| Noise | 60dB(A) | 60dB(A) |
| Ingress Protection Rating | IP20 | IP20 |
| Recommended Operation Environment | Indoor | Indoor |
| Installation Method | Horizontal | Horizontal |
| Weight | 45kg | 45kg |
| Dimension L×D×H(mm) | 710×450×192 | 710×450×192 |
| Certification | CE/TUV/IEC | CE/TUV/IEC |
